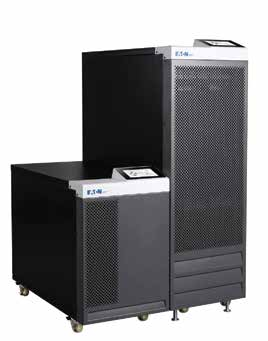

EATON 93T UPS
The Eaton 93T UPS is an innovative three-phase, transformer-free monolithic UPS solution that delivers reliable and cost-effective power protection from 15kW to 200kW. Designed for IT installations and mission critical applications, the 93T combines high efficiency of up to 99% in ESS mode, unity output power factor and a compact integrated footprint with internal battery autonomy. Fully lithium-ion battery compatible and equipped with a 7-inch colour touchscreen, the 93T is an ideal choice for data centres, government and educational network centres, and financial institutions seeking low TCO with superior performance.
- Power Rating : 15-200 kVA / 15-200 kW
- Voltage : 380/400/415 3Ph 4W
- Frequency : 50 / 60Hz
- Topology : Double conversion (transformer-free)
- Configuration : Tower
- Efficiency : >96% double conversion, 99% ESS mode
- Output Power Factor : 1 (Unity)
- Battery Type : VRLA, NiCad, Lithium-ion
- Parallel Capability : Up to 4 units (800kW)
- Overload Capacity : 10 minutes @125%
- Operating Temperature : 0-50°C
- Up to 99% efficiency in ESS mode and above 96% in double-conversion mode
- Eaton Hot Sync® technology parallels up to 4 units, supporting system loads up to 800kW
- Fully lithium-ion battery compatible with 10-year performance warranty and 15-year design life
- Eaton ABM® intelligent battery management extends battery life by more than 50%
- Integrated autonomy houses up to 5 battery strings internally for 5 minutes backup at full load, without a separate battery cabinet
- Unity output power factor enables 100% utilisation of system capacity
- Built-in back feed protection compliant with IEC 62040-1, no additional installation required
- Module-level maintenance enables low MTTR (less than 30 minutes)
- Smart load-allocation keeps 100-200kVA systems operating at the high-efficiency load point
- Powerful charger delivers up to 70% of the UPS rated power for faster recharge and longer backup time
- 7-inch colour touchscreen for control and monitoring of system status and performance
- Real-time capacitor status monitoring eliminates potential safety issues at high temperature
- Intelligent Power Manager® software monitors and manages multiple power devices across your network
- Integral input, bypass, output and maintenance bypass switches save additional I/O footprint
