EnerRocket ESH 12-400W FR SMF VRLA Battery
The EnerRocket ESH 12-400W FR is a 12V high rate SMF VRLA battery rated at 400W per cell for 15 minutes, engineered for applications that demand strong short-duration power delivery such as UPS systems, telecommunication networks, fire alarm and security installations, and medical equipment. Its thin plate pure lead grid construction and very low internal resistance of 4.4 mΩ deliver high discharge current with fast recharge capability, while the flame-retardant FR-V0 grade ABS container adds an extra layer of installation safety. With a 12-year design life as per EUROBAT standards, non-spillable sealed construction and completely maintenance-free operation, the ESH 12-400W FR is built for long-term reliability in critical backup applications.
- Model : ESH 12-400W FR
- Nominal Voltage : 12 V
- Rated Capacity (25°C) : 400 W/cell @ 15 min, 1.67 ECV
- Design Life : 12 Years (as per EUROBAT standards)
- Series : High Rate Long Life Series
- Battery Type : SMF VRLA, AGM, thin plate pure lead
- Internal Resistance (25°C, 100% charge) : ≤ 4.4 mΩ
- Self Discharge (20°C) : 1 month, 97% remaining capacity
- Maximum Discharge Current (25°C) : 810 A (5 sec)
- Maximum Charging Current (25°C) : 28 A
- Charging Voltage — Standby Use (25°C) : 13.4 to 13.8 V, temp. compensation −20 mV/°C
- Charging Voltage — Cyclic Use (25°C) : 14.4 to 14.7 V, temp. compensation −30 mV/°C
- Operating Temperature — Discharge : −20°C to 60°C
- Operating Temperature — Charge : −10°C to 60°C
- Storage Temperature : −20°C to 60°C
- Normal Operating Temperature : 25°C ± 3°C

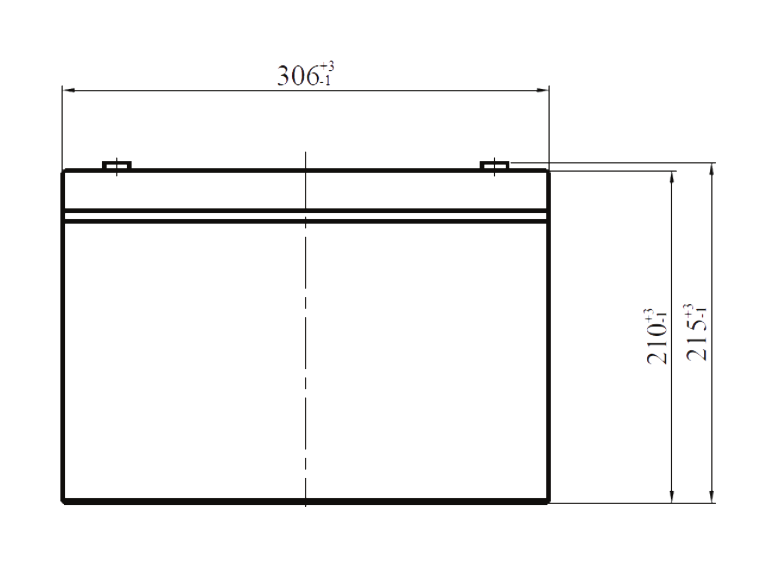

- Length : 306 mm
- Width : 168 mm
- Height : 210 mm
- Total Height : 215 mm
- Weight : 29.2 kg ± 5%
- Terminal : M8
- Container Material : ABS, FR-V0 flame retardant grade
- Compliance : IEC 60896 Part 21 & 22, EUROBAT design life, ISO 9001, UL, CE
- Thin plate pure lead grid delivers high rate discharge performance
- Flame-retardant FR-V0 grade ABS container for enhanced fire safety
- Non-spillable sealed construction for safe operation in any orientation
- Absorptive Glass Mat (AGM) system for efficient electrolyte retention
- Sealed lead acid, completely maintenance-free — no water topping required
- Gas recombination technology minimises electrolyte loss
- Venting system maintains low internal pressure for added safety
- Very low internal resistance of 4.4 mΩ supports fast charging and high current delivery
- High discharge capability of up to 810 A for 5 seconds
- Low self-discharge retains 97% capacity after one month of storage
- Heavy-duty, highly optimised grids for extended service life
- Terminal design engineered for high current with M8 connection
- Wide operating temperature range from −20°C to 60°C on discharge
- 12-year design life as per EUROBAT standards
- Suitable for UPS systems, telecommunication systems, fire alarm safety & security systems and medical equipment
- ISO 9001 quality assured, UL and CE marked, compliant with IEC 60896 Part 21 & 22
