EnerRocket ESC 200-12 FR SMF VRLA Battery
The EnerRocket ESC 200-12 FR is a 12V 200Ah sealed maintenance-free (SMF) VRLA battery from the Long Life Series, engineered for large-capacity standby power in UPS systems, telecommunication networks, fire alarm and security installations, and medical equipment. Featuring a flame-retardant FR-V0 grade ABS container and Absorptive Glass Mat (AGM) technology, it delivers a 12-year design life as per EUROBAT standards, with a very low internal resistance under 4.0 mΩ enabling fast charging and high current delivery. Heavy-duty optimised grids, non-spillable sealed construction and completely maintenance-free operation make the ESC 200-12 FR a dependable choice for the most demanding backup power applications.
- Model : ESC 200-12 FR
- Nominal Voltage : 12 V
- Nominal Capacity (25°C) : 200 Ah @ 10 Hr rate
- Design Life : 12 Years (as per EUROBAT standards)
- Series : Long Life Series
- Battery Type : SMF VRLA, AGM
- Internal Resistance (25°C, 100% charge) : < 4.0 mΩ
- Self Discharge (20°C) : 1 month, 97% remaining capacity
- Maximum Discharge Current (25°C) : 1000 A (5 sec)
- Maximum Charging Current : 60 A
- Short Circuit Current : 3300 A
- Charging Voltage — Standby Use (25°C) : 13.4 to 13.8 V, temp. compensation −20 mV/°C
- Charging Voltage — Cyclic Use (25°C) : 14.4 to 14.7 V, temp. compensation −30 mV/°C
- Operating Temperature — Discharge : −20°C to 60°C
- Operating Temperature — Charge : −10°C to 60°C
- Storage Temperature : −20°C to 60°C
- Normal Operating Temperature : 25°C ± 2°C

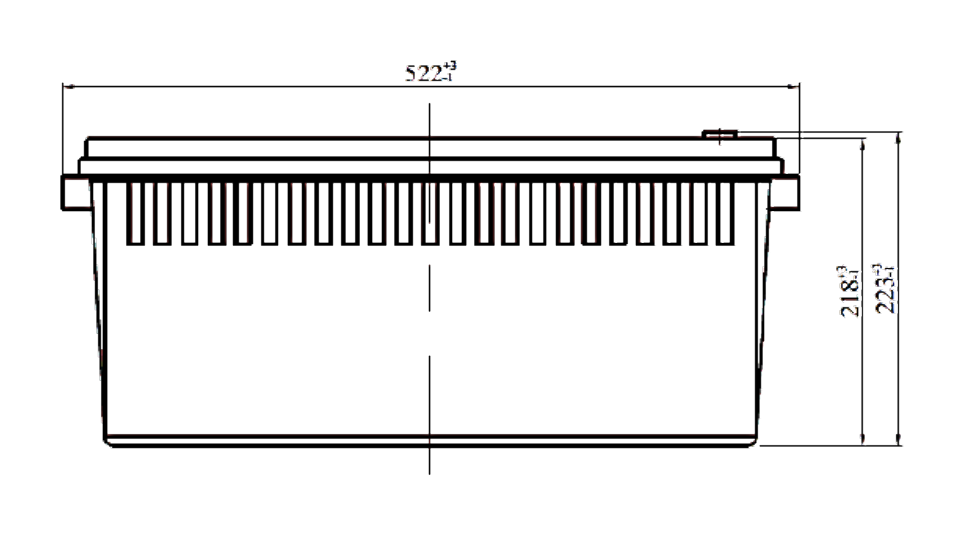

- Length : 522 mm
- Width : 238 mm
- Height : 218 mm
- Total Height : 223 mm
- Weight : 59.1 kg ± 5%
- Terminal : M8
- Container Material : ABS, FR-V0 flame retardant grade
- Compliance : IEC 60896 Part 21 & 22, EUROBAT design life, ISO 9001, UL, CE
- Flame-retardant FR-V0 grade ABS container for enhanced fire safety
- Non-spillable sealed construction for safe operation in any orientation
- Absorptive Glass Mat (AGM) system for efficient electrolyte retention
- Sealed lead acid, completely maintenance-free — no water topping required
- Gas recombination technology minimises electrolyte loss
- Venting system maintains low internal pressure for added safety
- Very low internal resistance under 4.0 mΩ supports fast charging and high current delivery
- High discharge capability of up to 1000 A for 5 seconds
- Maximum charging current of 60 A allows faster recharge after deep discharge
- Low self-discharge retains 97% capacity after one month of storage
- Heavy-duty, highly optimised grids for extended service life
- High power output with M8 terminal design engineered for high current
- Wide operating temperature range from −20°C to 60°C on discharge
- 12-year design life as per EUROBAT standards
- Suitable for UPS systems, telecommunication systems, fire alarm safety & security systems and medical equipment
- ISO 9001 quality assured, UL and CE marked, compliant with IEC 60896 Part 21 & 22
